Performance features:

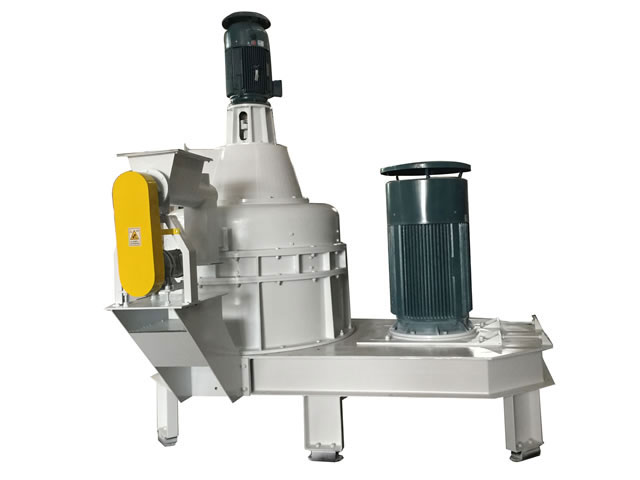

Grinding chamber and winnowing classifying chamber are incorporated in the same machine, thus forming a compact structure. It can complete the process of grinding, winnowing and classifying and regrinding process simultaneously.The fitness of grinding from 60 to 200 is at your disposal;Alloy hammerhead with special hard material, gear ring and high-powered wear-resisting plate feature long service lives and low cost per ton;Grinding material has a low temperature rise, which ensures the nutrients of raw material;Adopting an air cooling feature, the main bearing builds in itself a closed imported SKF high-speed bearing which ensures the continuous operation with no failure;Independent feeding equipment with variable frequency enables the entry of material into the grinding chamber in a well-proportioned manner;Having been equipped with a dedicated silencer, it will greatly reduce the noise;It applies to the ultrafine grinding of many materials like corns, wheat, peanut meal, fermented soybean meal, fish meal, shrimp shells, gourmet powder, glucose, drugs, dye intermediate and activated carbon.
Major Technicai Parameters
| Product model | TLCWF110 | TLCWF130 | TLCWF150 |
|---|---|---|---|
| Main engine power (KW) | （75/90/110）+5.5+1.5 | （132/160）+7.5+1.5 | 160+11+1.5 |
| production capacity (t/h) | 1-3 | 3-6 | 4-8 |
